LabPure – Laboratory Water Purification Systems

Compact, modular RO-EDI plant – for high-purity lab water

One of our core EcoRange products, LabPure is a multi-technology centralised laboratory water purification system. Its unique design provides reliable, small volume, high-purity water for laboratories in universities and clinical research environments, healthcare, diagnostics and pharmaceutical settings.

LabPure includes three core technologies in one modular design: energy-efficient, skid-mounted reverse osmosis membranes (RO), carbon dioxide (CO2) degas membranes and electrodeionisation (EDI). The result: fast access to high-purity water all from one compact, centralised unit.

Produce ultra-pure lab water in one compact system – with no chemicals and low operating costs

Pure water is a critical requirement for laboratories. From washing and cleaning to direct use in experiments and workflows, water must be free of impurities, microbes and ions to ensure robust and accurate results.

The Envirogen lab water purification system, LabPure, is designed specifically for laboratories, generating between 150 to 1000 l/hr of purified lab water to a high specification:

  • 1-15 mega-ohm-cm (MΩ) conductivity at 25°C
  • Less than 50 ppb of total organic carbon (TOC)
  • Fewer than 1 colony-forming unit per millilitre (CFU/ml)
  • Neutral pH
  • Removal of particles greater than 0.1µm

Reverse osmosis plants to meet every requirement

Our EcoRO range features many different models to meet every water standard and flow rates are available from 0.2m³/hr to 100m³/hr – with solutions available for even the most demanding applications.

Because EcoRO is a membrane-based technology and requires no chemical handling or storage, it is the ideal choice for businesses that prefer not to have chemicals on site. Thanks to its unique design, EcoRO plants can run continuously with no regeneration needed. High-purity water streams are available when you need them, 24-hours a day.

For low flow rates, our new, space-saving EcoRO Compact model combines high-performance with cost-effective operation to deliver flow rates of 250 – 1,000 litres/hour. With an internal AB Airgap break rank, EcoRO Compact requires no additional external equipment or chemicals and comes pre-assembled, tested and skid-mounted for easy integration with existing processes.

Our EcoRO models aren’t just effective, they’re efficient too. Reverse osmosis technology works at ambient temperatures and uses less energy and water than traditional demineralisation systems. Our RO water systems can be designed to deliver water recovery rates of up to 90%, helping businesses to work towards high sustainability standards while ensuring optimal quality.

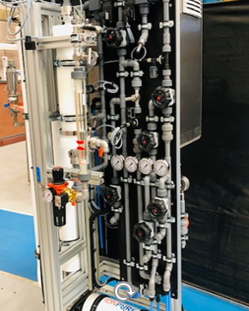

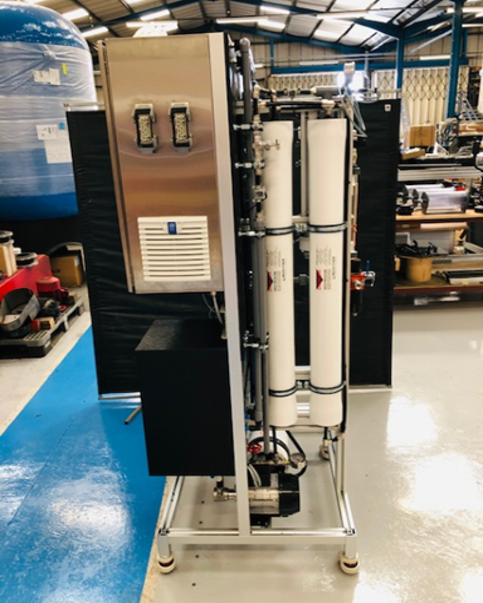

Laboratory water purification: Envirogen’s LabPure RO-EDI water system, featuring reverse osmosis membranes, CO2 degasser and EDI modules.

The chemical-free design and low energy RO membranes mean low operating costs, the CO2 degassers improve process efficiency and the high-flow rate electrodeionisation reduces the system footprint.

Each compact, modular LabPure laboratory water purification system is supplied skid-mounted, pre-assembled, and commissioned for simple installation and fast start-up. The small footprint means that LabPure can be installed virtually anywhere and easily connected to provide a centralised source of high-quality water.

With an easy-to-use PLC and HMI control system, LabPure is operated at the touch of a button and intelligent monitoring ensures that water quality is maintained at the very highest standards. With our comprehensive service and maintenance plans, you’ll also have access to a nationwide team of expert after-sales support staff.

Looking for ultra-pure water for other industries? Discover our EcoPure demineralised water system.

Best for:
  • Generating high-quality, purified water streams for laboratory use
  • Low volume requirements from a centralised system, supplying many laboratories from one source
  • Fitting in confined plant rooms
  • Fast connection and quick start-up
LabPure delivers:
  • Highly efficient, low-cost water streams
  • Chemical-free generation – reducing costs and risks to operators
  • Very low conductivity, carbon, bacteria and particulate levels
  • Automated and remote monitoring to increase productivity and cost
  • Straightforward service and maintenance
Options to choose:
  • From five different models
  • Flow rates from 150–1000 l/hr
  • Bespoke configurations for very high flow rates
